The Bug: Steampunk Computer Mouse

The Telecalculograph finally has a suitable mouse!

Imaginary:

Though the eccentric Professor William C. Ravenscroft remains stingy on details of his “Telecalculograph“, he has recently allowed photography of the device with which its user controls it. These images, as well as speculation upon their contents follows:

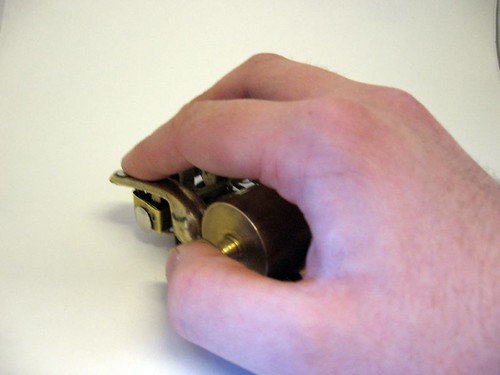

One holds the device in a manner similar to the way a wood-worker holds a sanding block. The palm rests upon the “ball” in the foreground, with the fingers extending forward. The middle digit is placed upon the spiked cog, while the pointing-finger and the ring-bearing finger sit on the studded levers on either side. The thumb and small-finger rest comfortably on the side of the cylinder, helping to grip the contraption. The “Bug”, as the Professor calls it, is slid about upon a table top–thusly controlling a mobile indicator upon the Telecalculograph’s display. Push the device away from one’s self, and the arrow “moves” towards the top of the viewing window. When the arrow has been positioned appropriately so that it is pointing at the desired “item” on the glass, the user pushes down upon the various levers to elicit his desired effect. Turning the wheel in the center produces an action similar to turning a page in a book, or cranking a kinetoscope.

How the device works is shrouded in mystery, however some speculation can be made. One can clearly see that there are small tubes running from the wheel and levers to the cylinder in the middle. It appears that they are simple mechanical linkages, however they remain perfectly stationary even when the controls are manipulated. This leads one to believe that they are likely either hydraulic or electrical in nature. Power seems to come from the large drum in the center, as there is a key extending from the side–similar to a small clock–suggesting that it is based upon the principles of clockwork. This cylinder also has two knobs, presumably for fine adjustment. The device connects to the Telecalculograph by means of a cloth hose which extends outward from its front. Presumably, the actions taken with the device are transmitted through this cable. Like the Bug’s internal workings, it is unknown whether this operates on galvanic or hydraulic principles. Far more mysterious, however, is the way in which the contraption measures its movement. Upon stealing a look at the underside of the Bug, this author saw not the wheels one expected, nor in fact any visible moving parts. Instead, there was only what appeared to be a small glass lens located directly under the domed portion of the device. It was observed to emanate a fiery orange glow, though how or why is unknown. The following most ghastly object was, however, seen in the Professor’s laboratory in close proximity to the Bug. It appears to be a human eye-ball suspended in a glass chamber. A troubling tangle of wires extend from the organ’s nerve bundle and out through the vessel’s corked seal.

One can only speculate that this “bio-galvanic” device is used to “see” the Bug’s movement. One can only imagine what a man with such a mastery of the sciences is capable of…

Real (mouse):

The “Bug” is based around this nameless laptop mouse (mine was procured for much less money, mind you). Other than that, it’s pretty much as it looks: a big jumble of bits and bobs from my parts bin. The two large gears that make up the base were harvested from the Sargent Recording pH Stat.

The cylinder in the middle is a chunk of solid brass scrounged from one of my university’s many scrap bins. The knobs and key all rotate, but do nothing beyond that.

The circuit board (and presumably the human eye!) are hidden under this brass-plated-steel corner piece from a steamer trunk. A random cog fills in the gap in back, and allows some of the mouse’s LED light to glow through. It may be noted that I replaced the red LED with an orange one which makes it match the computer better, but does not effect performance.

The PCB is uniformly painted a gun-metal gray to make the visible parts look a bit less “circuity”.

Wires connecting the buttons, scroll-whee, and USB cable to the board go under the cylinder (which has a large notch cut out of it) and around the gear post.

The six wires leading to the buttons and scroll wheel are thin, rubber-insulated copper wire (from an IDE cable) housed within tiny brass tubing. I tried enamel-insulated bellwire originally, but it proved to be extremely problematic. It seemed that no matter what I did, things were connecting to things they shouldn’t…

The scroll-wheel is made from an alarm clock’s escapement wheel and a small brass knob. The rotation sensor and middle-click button (both harvested from the mouse) are concealed within the brass supports. These supports, as well as the left and right “buttons” are actually hinge pieces from a toilet seat mounting kit!

The actual button portions are standard “leaf switches” enclosed in brass sheeting. To give the buttons a more old-fashioned, mechanical feel, I added the little spring cylinders you see above. They are made from brass tubing, springs from a mechanical pencil, and brass screws. These springs do make clicking a bit slower, so the screws are easily removable when some fast-clicking needs to be done.

The USB cable is a standard one that has been stripped of its original rubber skin. The shielded wires were then fed through a length of hollowed out parachute cord to give it a cloth-covered look (besides making it virtually unbreakable!)

The bottom ain’t pretty, but it works. The optical sensor looks through the rear gear’s hub, while the whole thing glides along on it’s polished base and the two (white) polystyrene squares (poor man’s Teflon). Did I mention how heavy it is? Oh, she be heavy! I don’t have a scale, but I’d say it weighs a good 10-15oz… Its actually quite nice and comfortable to use. It fits my hand perfectly (imagine that!), and I find I rather like the heft. Everything is so light and plasticy these days, that it’s most refreshing to handle something with such substance!

Real (eyeball):

The “eye in a jar” was made by forming the eye and optic nerve out of poster putty (Blu-Tack), then painting it with model paints. I put a clear coat over it, with mixed results. Somehow it absorbed the water and turned milky and wrinkled. While this was not the intended effect, I’m rather happy with it as it makes it look absolutely disgusting :) The “formaldehyde” is actually Tazo “Calm” tea, which, so far, seems to be holding up well.

Cost: $5US

Time: About 10 hours for the mouse, 1 hours for the eye

Tools: Basic hand tools, Dremel w/ press, soldering iron, X-Acto saw w/ miter box, and JB Weld

Date of Completion: April 18th, 2007
